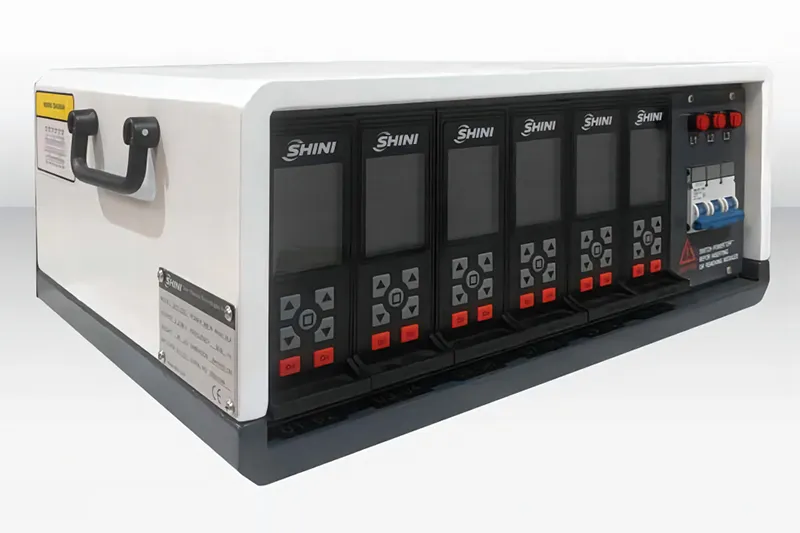

Hot Runner Temperature Controller

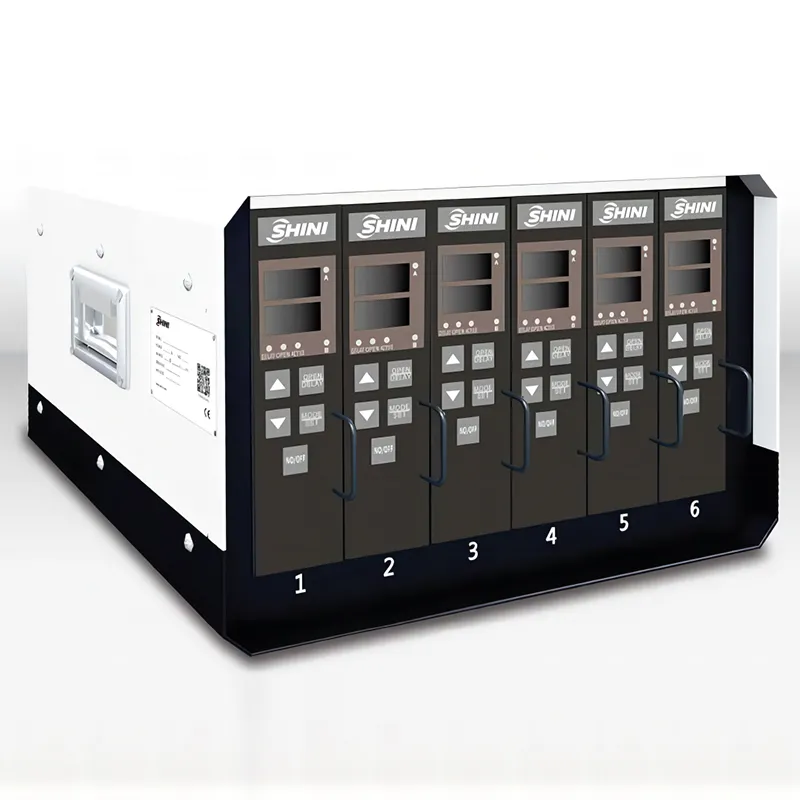

Plug-in hot runner controller with one card to control one zone
This hot runner temperature controller is a device designed to maintain control over the temperature in hot runner systems used in plastic injection molding. This plug-in controller manages each zone independently with a dedicated card, ensuring optimal performance.
- Utilizes FUZZY PIDD Control Technology.
- Utilizes advanced control algorithms to enhance temperature accuracy.
- Adjusts outputs to automatically compensate for ambient temperature changes.
- Ensures accurate temperature readings by monitoring for sensor faults.
- Checks for and reports any breaks in the measuring circuits within controller.
- Observes and reports the electrical current to the heater to prevent overload.
- Guards against output failures and short circuits.
- Alerts if the temperature deviates from set parameters.
- Allows manual control over the power output when automatic control is not desirable.
- Prevents unauthorized changes to the controller settings.
- Features 380V input protection with alarm notifications.
- Provides detailed diagnostic outputs and error codes to aid in troubleshooting.
The temperature controller operates by continuously maintaining the set temperature as specified by the user. It utilizes an internal microprocessor (MCU) to monitor the temperature of the heating components. The microprocessor processes this data and controls either a silicon controlled rectifier or a solid-state relay to achieve the desired temperature regulation.
- Offers up to six different types of alarm outputs for enhanced monitoring.
- RS485 Communication Functionality: Supports both ASCII and RTU modes
This hot runner temperature controller is an essential tool for ensuring the precise temperature management required in high-quality plastic injection molding processes. Its comprehensive range of features makes it adaptable to a variety of industrial applications, ensuring reliability and efficiency in production.
| Dimensions (Zones) | L(mm) | W(mm) | H(mm) | Weight (kg) |
| 1 zone | 115 | 245 | 230 | 5 |
| 2 zones | 262 | 322 | 235 | 9.5 |
| 3 zones | 262 | 322 | 235 | 11.5 |
| 4 zones | 262 | 322 | 235 | 12.3 |
| 6 zones | 364 | 322 | 235 | 17.5 |
| 8 zones | 465 | 322 | 235 | 23.2 |
| 10 zones | 566 | 322 | 235 | 26.5 |
| 12 zones | 364 | 322 | 435 | 30 |
| 16 zones | 465 | 322 | 435 | 39 |
| 20 zones | 566 | 322 | 435 | 47.3 |
| 24 zones | 465 | 322 | 635 | 55 |
| 30 zones | 566 | 322 | 635 | 67 |
| 32 zones | 465 | 322 | 835 | 79.9 |
