SAL-G

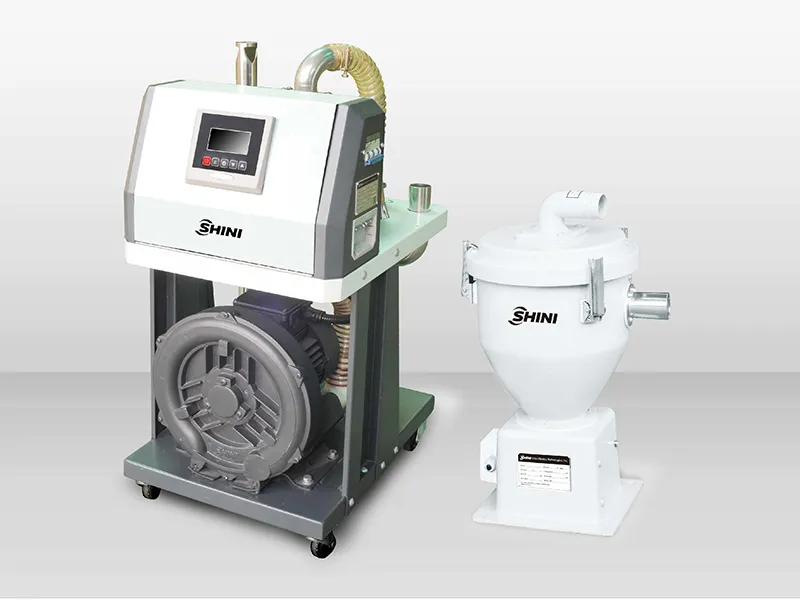

Standard Separate-Vacuum Hopper Loader
Plastic feeding machine for conveying plastic granules over long distance
This standard separate-vacuum hopper loader is a robust feeding machine tailored to handle the efficient transfer of plastic granules across extended distances, enhancing productivity and reliability in plastic processing operations.
Features
- Equipped with a device to prevent motor overheating, significantly extending the life of the machine.
- Includes an alert system to proactively notify operators of material shortages, enabling quick resolution of any issues.
- Features a standalone filter structure that simplifies the process of dust removal and filter inspection, ensuring easy maintenance and optimal performance.
Specifications
| Main unit | Hopper receiver | RS485 communication function | Conveying pipe diameter (inch) | Vacuum pipe diameter (inch) | Conveying capacity (kg/hr) | ||||||||
| Model | Version | Blower type | Blower power (kW) | Dimensions (mm) H×W×D | Weight (kg) | Recommended model | Hopper capacity (L) | Dimensions (mm) H×W×D | Weight (kg) | ||||
| B | Inductive | 0.75 (3Φ) | 740×400×410 | 58 | SMH-6L | 6 | 460×260×315 | 6 | ● | 1.5 | 1.5 | 300 | |
| SVH-6L | 600×285×305 | 7 | |||||||||||
| SHR-6U | 420×285×360 | 6 | |||||||||||
| B | Inductive | 1.5 (3Φ) | 740×400×410 | 65 | SMH-12L | 12 | 515×300×350 | 7 | ● | 1.5 | 1.5 | 480 | |
| SVH-12L | 695×300×360 | 11 | |||||||||||
| SHR-12U | 470×315×400 | 7 | |||||||||||
| B | Inductive | 1.85 (3Φ) | 785×400×410 | 68 | SMH-24L | 24 | 720×325×375 | 9 | ● | 2 | 2 | 700 | |
| SVH-24L | 1120×360×375 | 13 | |||||||||||
| SHR-24U | 690×315×400 | 9 | |||||||||||
| Notes: 1) "SMH" stands for vacuum hopper receiver, "SVH" stands for photosensor hopper receiver, "SVR-U" stands for Euro-hopper receiver 2) Test conditions of conveying capacity: Plastic material of 0.65kg/L in bulk density and 3-5mm in diameter Vertical conveying height: 4m Horizontal conveying distance: 5m 3) "●" stands for standard, "〇" stands for optional, "—" stands for none 4) All hoppers adopt 4P heavy-duty connector 5) Power: 3Φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. | ||||||||||||
