Hot Runner Temperature Controller

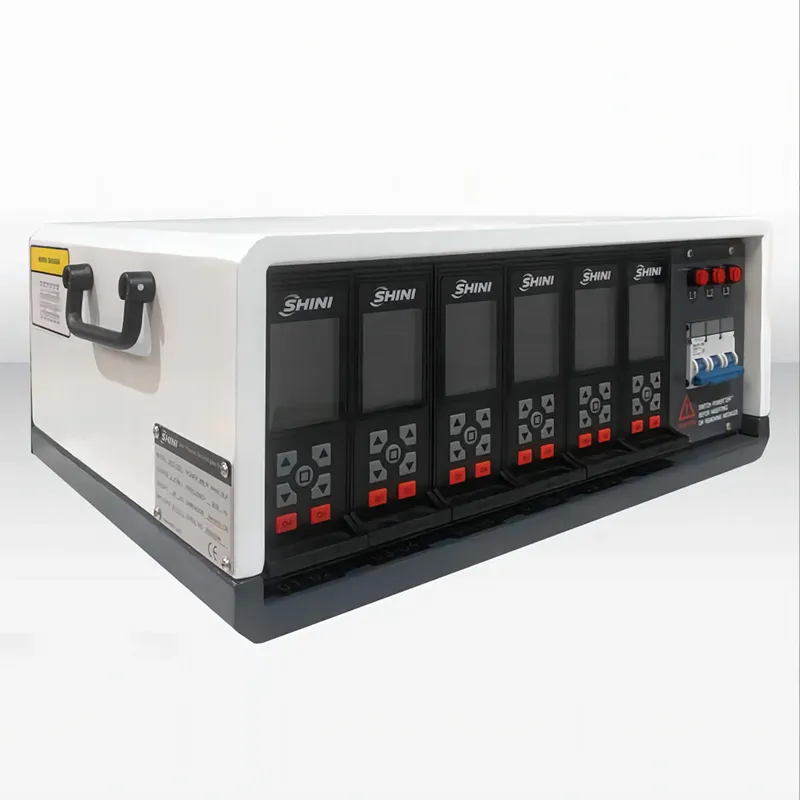

Plug-in hot runner controller with one card to control two zones
This hot runner temperature controller is designed for efficient temperature management in plastic injection molding, particularly where space is limited. This plug-in controller manages two zones independently, simplifying the setup and integration within compact injection molding environments.
- The SHTC-12ED controller is notably small, making it ideal for injection molding setups with limited space.
- Equipped with HARTING connectors known for their reliability and robustness, ensuring stable connections.
- Features a user-friendly LCD screen interface that can switch freely between Chinese and English, enhancing usability for operators.
- All units are CE certified, adhering to international safety standards. Includes 380V power input protection to safeguard against potential electrical issues.
- Offers protection for temperature sensing wires and power cables, with alarm notifications for additional safety.
- Comprehensive error codes are displayed on the LCD in both Chinese and English, facilitating easier troubleshooting.
- Allows operators to easily revert to factory settings with a single button, simplifying maintenance and setup processes.
- One-key standby function for injection molding machines helps prevent plastic carbonization and yellowing during downtime by maintaining critical settings.
- Capable of controlling a single group with a power range of 7000-10000 watts, suitable for high-demand applications.
- Customizable temperature control trolley provides mobility and flexibility in factory settings, available for customization to meet specific operational needs.
This hot runner temperature controller is engineered to offer precise control, reliability, and user-friendly features, making it an essential tool for modern plastic injection molding facilities looking to optimize their hot runner systems.
| Dimensions Zones | L (mm) | W (mm) | H (mm) | Weight (kg) |
| 2 zones | 130 | 310 | 190 | 9.2 |
| 4 zones | 180 | 310 | 190 | 11.7 |
| 6 zones | 230 | 310 | 190 | 14 |
| 8 zones | 280 | 310 | 190 | 18.8 |
| 10 zones | 375 | 310 | 190 | 22 |
| 12 zones | 425 | 310 | 190 | 26 |
| 16 zones | 325 | 310 | 355 | 35 |
| 20 zones | 375 | 310 | 355 | 40.25 |
| 24 zones | 425 | 310 | 420 | 45 |
| 32 zones | 425 | 345 | 585 | 93 |
| 48 zones | 425 | 345 | 750 | 109 |
| Power input | AC110-245V 50/60HZ |
| Load | 16A, 3600W per zone |
| Output | PHA(phase shift pulse width modulation) OCR (solid state) |
| Thermocouple type | J or K type |
| Temperature control range | 45-450℃ |
| Temperature stability | ±0.5% |
| Temperature control type | FUZZY+PIDD Artificial intelligence + phase-shift control |
| F1 | 250-1A |
| F2.F3 | 250-16A |
| Automatic ambient temperature compensation function of internal measurement tool | |
| Soft start to eliminate mould leakage caused by moisture | |
