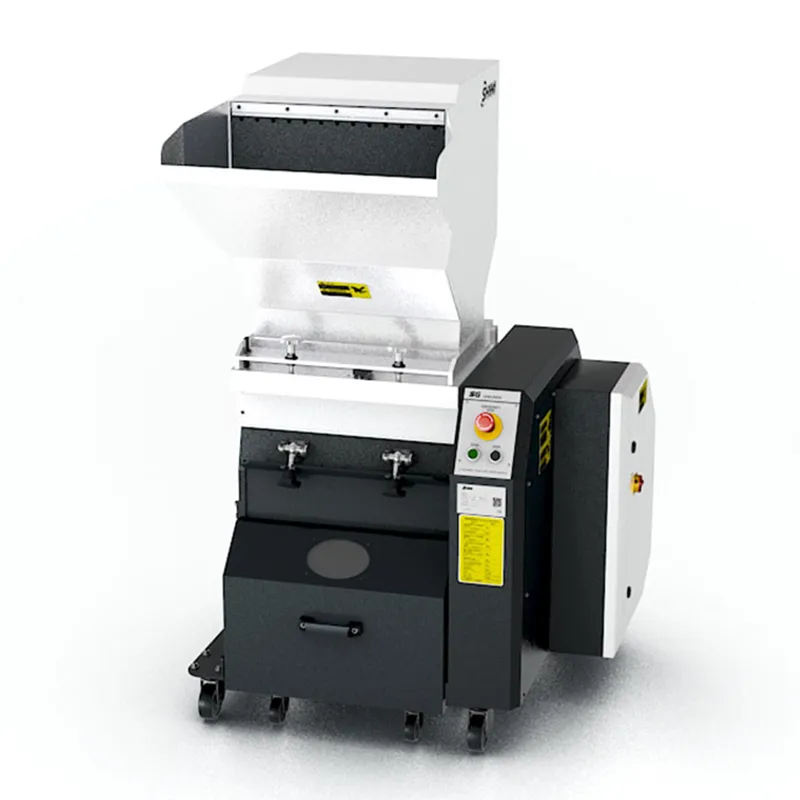

Standard Central Granulator
Plastic granulator for centralized recycling of plastic wastes from plastic moulding machines
This series of standard central granulator is engineered for the efficient recycling of plastic waste directly from molding machines. With its design utilizing high-quality, durable steel blades in either staggered or paddle blades configurations, this plastic granulator ensures effective, low-noise operation. Ideal for facilities aiming to optimize their recycling processes, the SG series central granulator enhances productivity while minimizing environmental impact through its advanced safety features and energy-efficient performance.
- The SG-23E central granulator features claw-type staggered blades, while the SG-30E and SG-36E central granulators use paddle blades, customized to different processing needs.
- Blades are made from imported high-strength steel, ensuring durability and longevity.
- Claw-type blades are designed with a staggered knife structure to disperse impact loads efficiently, these blades offer high cutting efficiency and are easy to maintain due to their non-adjustable knife rack design, simplifying blade replacement.
- Paddle blades incorporate a progressive cutting integrated power design that results in effective cutting with reduced noise levels.
- Includes motor overload protection and multiple safety protections to ensure secure operation.
- Standard-equipped presetting knife jig allows for external adjustments of the moving knives, eliminating the cumbersome process required for internal adjustments.
These standard central granulators are designed for safety and operational efficiency, matching the performance of quiet central models but with enhanced economic benefits. It is suitable for grinding various plastic materials from injection molding, blow molding, and other waste. This plastic auxiliary equipment is built with a structure for easy operation, quick blade changes, and features both staggered rotating and progressive cutting blade designs to efficiently capture and crush materials while minimizing energy loss.
| Model | ||||||||
| Motor power (kW) | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | 30 | |
| Rotating speed (rpm) | 415 | 415 | 415 | 415 | 415 | 540 | 540 | |
| Blade material | SKD11 | SKD11 | SKD11 | SKD11 | SKD11 | SKD11 | SKD11 | |
| Quantity of fixed blade | 2×1 | 2×1 | 2×1 | 2×1 | 2×1 | 2×1 | 2×2 | |
| Quantity of rotating blade | 3×2 | 3×3 | 3×4 | 3×1 | 3×1 | 3×2 | 3×2 | |
| Cutting chamber (mm) | 230×240 | 230×360 | 230×480 | 300×480 | 300×600 | 360×500 | 360×750 | |
| Max. output capacity (kg/hr) | 90 | 120 | 150 | 185 | 220 | 620 | 800 | |
| Noise level dB(A) | 105~110 | 105~110 | 105~110 | 105~110 | 105~110 | 110~115 | 110~115 | |
| Diameter of screen mesh (mm) | ●(φ8) | ●(φ8) | ●(φ8) | ●(φ8) | ●(φ8) | ●(φ10) | ●(φ10) | |
| Dimensions | H(mm) | 1390 | 1390 | 1390 | 1430 | 1430 | 1750 | 1750 |
| H1(mm | 1320 | 1320 | 1320 | 1330 | 1330 | 1570 | 1570 | |
| W(mm) | 590 | 710 | 830 | 830 | 950 | 1250 | 1500 | |
| W1(mm) | 240 | 360 | 480 | 480 | 600 | 500 | 750 | |
| D(mm) | 1130 | 1130 | 1130 | 1200 | 1200 | 1350 | 1450 | |
| D1(mm) | 890 | 890 | 890 | 1000 | 1000 | 1100 | 1400 | |
| Weight (kg) | 320 | 380 | 450 | 500 | 530 | 1120 | 1360 | |
| Notes: 1) SKD11 is JIS steel grade 2) The maximum output capacity depends on the diameter of screen mesh and composition of material 3) Noise level varies depending on different materials and motor types 4) All plastic materials should be crushed at normal temperature to avoid the blade from being sticked with materials 5) Power: 3φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. | |||||||
