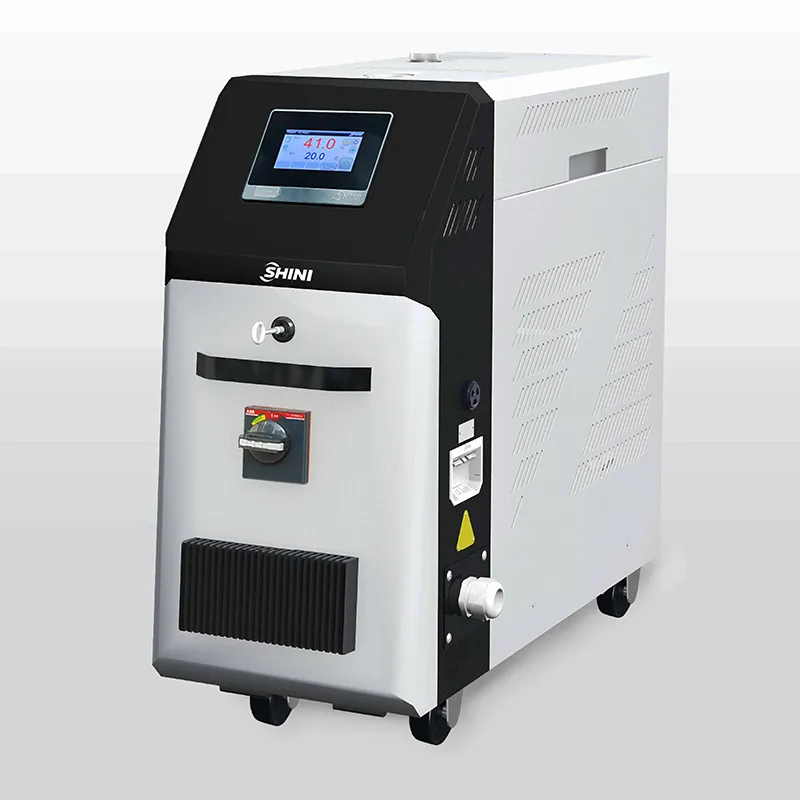

Mould Temperature Controller (Oil Heater)
Hot oil system for mould heating and temperature maintaining
The oil heater mould temperature controller is an essential piece of plastic auxiliary equipment available in standard and high-temperature series. It is designed to maintain precise mould temperatures up to 200°C in the standard series and up to 300°C in the high-temperature series, making it ideal for applications requiring consistent heating and temperature control.
The oil heater mould temperature controller is an essential piece of plastic auxiliary equipment available in standard and high-temperature series. It is designed to maintain precise mould temperatures up to 200°C in the standard series and up to 300°C in the high-temperature series, making it ideal for applications requiring consistent heating and temperature control.
- Achieves temperatures up to 200°C in the standard configuration and up to 300°C in high-temperature models.
- Utilizes a fully digital P.I.D. modular temperature control system to maintain mold temperatures with an accuracy of ±0.5°C.
- Features stainless steel electric heaters for durability and resistance to corrosion.
- Includes high-efficiency, high-pressure pumps in standard models, with magnetic pumps available in high-temperature models that are explosion-resistant and minimize leakage.
- Equipped with phase reversal protection, pump overload protection, and low-level alarms to enhance operational safety.
- Incorporates SSR (Solid State Relay) control for improved performance and reliability.
- Supports multilingual operations and allows for easy switching between Celsius and Fahrenheit, facilitating user interaction and accessibility.
- Enables users to set operating times according to their production schedules, increasing flexibility and efficiency.
- Comes with an RS485 communication interface for easy integration into centralized control systems.
- Standard models are equipped with flow rate displays and a pump backflow prevention feature to ensure optimal performance and reliability.
| Model | Max. temperature | Heater power (kW) | Pump power (kW) | Max. pump flow (L/min) | Max. pump pressure (bar) | Number of heating tank | Main/sub. oil tank capacity (L) | Cooling method | Inlet/outlet size (Euro PT female thread) (inch) | Dimensions (mm) (H×W×D) | Weight (kg) |
| 200℃ | 6 | 0.55 | 27 | 3.8 | 1 | 6/3.2 | Indirect cooling | 3/4 / 3/4 | 700×350×935 | 70 | |
| 9 | 0.75 | 42 | 5.0 | 1 | 6/3.2 | 3/4 / 3/4 | 700×350×935 | 71 | |||
| 12 | 1.5 | 74 | 6.2 | 1 | 6.8/11.8 | 1 / 1 | 800×350×965 | 90 | |||
| 24 | 2.8 | 90 | 8.0 | 2 | 11/16 | 1 / 1 | 900×420×1000 | 145 | |||
| 36 | 4 | 100 | 8.0 | 3 | 14/16 | 1¹/₄ / 1¹/₄ | 930×420×1000 | 155 | |||
| 300℃ | 9 | 0.5 | 25.5 | 4.8 | 1 | 6/6 | 3/4 / 3/4 | 725×305×890 | 75 | ||
| 12 | 1.0 | 50 | 5.8 | 1 | 6.8/16 | 1/1 | 800×40O×1000 | 90 | |||
| 24 | 2.8 | 100 | 8.0 | 2 | 16/25 | 1/1 | 1088×520×1075 | 190 | |||
| Notes: 1) "D" stands for dual-heating zone, "HT" stands for high temperature type 2) Pump test conditions: power of 50Hz, purified water at 20℃ (±10% tolerance for either maximum flow rate or maximum pressure) 3) The appropriate temperature should not be higher than 180℃ when the machine works continuously 4) Power: 3φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. | ||||||||||
