Euro Design Self-Contained Hopper Loader

Stainless steel hopper loader for conveying plastics without material contamination

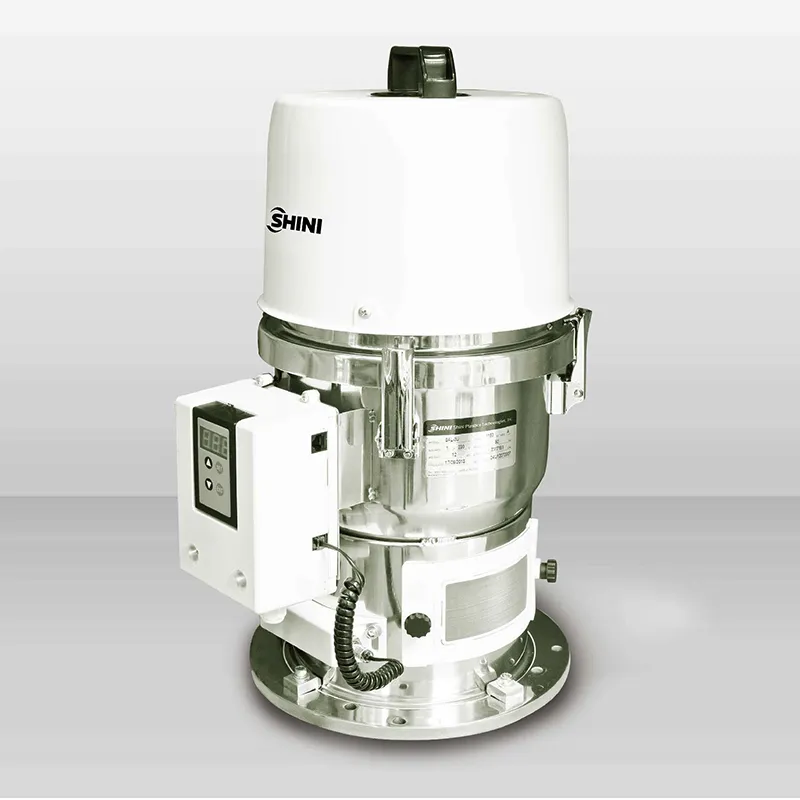

Euro Design Self-Contained Hopper Loader

This euro design self-contained hopper loader combines high efficiency with user-friendly design, making it ideal for handling and conveying plastic materials seamlessly in your operations.

Features
  • Features a carbon brush motor known for its high speed and large airflow, yet compact in size, making the unit easy to move and install.
  • Equipped with a wire-control controller that simplifies operation and includes an automatic cleaning function.
  • Includes a soft start feature to minimize wear on the carbon brush, with an indicator to alert when replacement is needed.
  • Both the hopper and its base can be adjusted in any direction to accommodate different setup configurations.
  • Comes with an automatic spray cleaning dust removal system, utilizing a fabric filter with a clogged filter alarm to maintain optimal function.
Request a Quote
Specifications
Model SAL-1U SAL-3U SAL-6U SAL-12U SAL-1U-E SAL-3U-E SAL-6U-E SAL-12U-E
Blower type Carbon brush
Motor power (kW) 0.46 1.15 1.15 1.15 0.46 1.15 1.15 1.15
Conveying pipe diameter (inch) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Conveying capacity (kg/hr) 30 200 300 400 30 200 300 400
Hopper capacity (L) 1 3 6 12 1.5 3 6 12
Hinged hopper lid ● ● ● ● ● ● ● ●
Auto-cleaning function ● ● ● ● ● ● ● ●
Air accumulator — — 〇 〇 — — 〇 〇
Dimensions H(mm) 460 555 620 720 640 730 780 940
W(mm) 240 305 340 340 270 305 340 340
D(mm) 320 380 420 420 335 385 420 420
Weight (kg) 10 11 12 14 11 13 16 18
Notes:
1) Test conditions of conveying capacity:
Plastic material of 0.65kg/L in bulk density and 3-5mm in diameter
Vertical conveying height: 4m
Horizontal conveying distance: 1m
2) Compressed air supply: 4-6kgf/cm²
3) "●" stands for standard, "〇" stands for optional, "—" stands for none
4) Power: 1Φ, 230VAC, 50Hz
